RXF57減速機加電機重量：

RXF57減速機加0.12KW電機重量14.5kg,RXF57減速機加0.18KW電機重量15kg,RXF57減速機加0.25KW電機重量19kg,RXF57減速機加0.37KW電機重量19.5kg,RXF57減速機加0.55KW電機重量24kg,RXF57減速機加0.75KW電機重量25kg,RXF57減速機加1.1KW電機重量29kg,RXF57減速機加1.5KW電機重量32kg,RXF57減速機加2.2KW電機重量41kg,RXF57減速機加3KW電機重量44kg,RXF57減速機加4KW電機重量55kg,RXF57減速機加5.5KW電機重量69kg,RXF57減速機加7.5KW電機重量82kg。齒輪減速機

RXF57減速機加油量：可加齒輪潤滑油

RXF57減速機M4安裝加1.1L，RXF57減速機M3安裝加1.1L，RXF57減速機M2安裝加0.8L，RXF57減速機M1安裝加0.5L，RXF57減速機M5安裝加0.7L，RXF57減速機M6安裝加0.7L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。同軸減速機

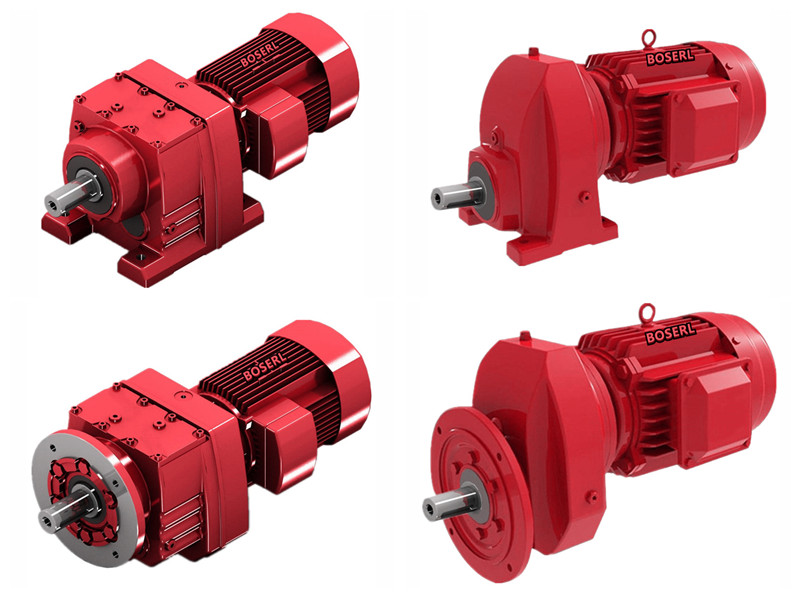

RXF57減速機實物圖：圖一為RXF57減速機不同心立式法蘭安裝，圖二為R57底腳安裝斜齒輪減速機，圖三為RF57法蘭立式安裝斜齒輪減速機，圖四為RX57減速機不同心臥式底腳安裝。

RXF57減速機型號表示方法：

RXF57減速機型號結構RXF57-B2.2KW-4P-減速比-安裝方式-接線盒位置。

RXF57減速機性能參數表結構說明：i代表減速比，Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入加置。硬齒面減速機

RXF57減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RXF57減速機參數：

RXF57減速機負載扭矩36Nm,39Nm,63Nm,65Nm,67Nm,68Nm,69Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

RXF57減速機電機可加交流、伺服、剎車、變頻、防爆、直流、三相、單相電機RXF57加0.12KW,RXF57加0.25KW,RXF57加0.37KW,RXF57加0.55KW,RXF57加0.75KW,RXF57加1.1KW,RXF57加1.5KW,RXF57加2.2KW,RXF57加3KW,RXF57加4KW,RXF57加5.5KW,RXF57加7.5KW。

RXF57減速機輸出轉速176rpm,255rpm,322rpm,369rpm,394rpm,446rpm,481rpm,530rpm,591rpm,686rpm,729rpm,848rpm,946rpm,1075rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RXF57減速機減速比1:1.3,1:1.48,1:1.65,1:1.92,1:2.04,1:2.37,1:2.64,1:2.91,1:3.14,1:3.55,1:3.79,1:4.35,1:5.07,1:5.5。

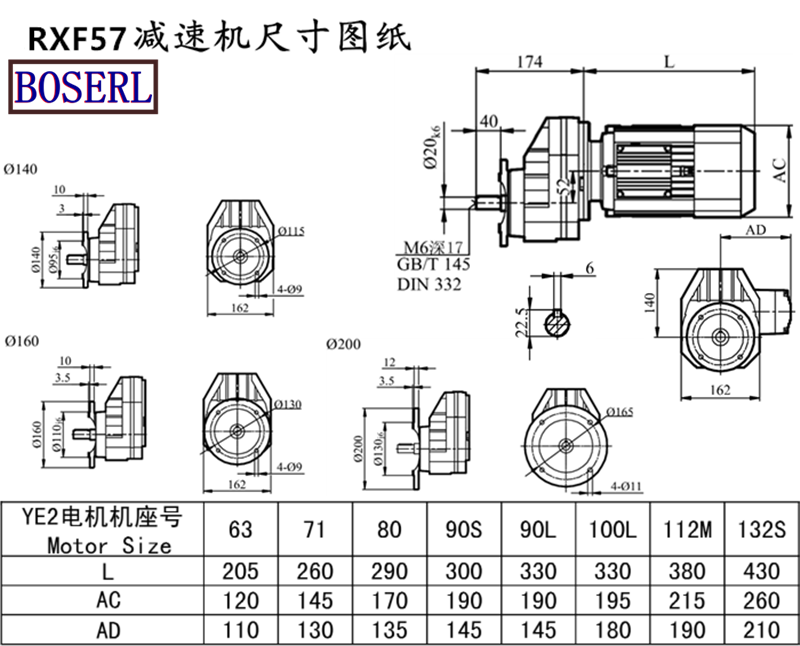

RXF57減速機外觀尺寸：輸出軸直徑Φ20+鍵2.5（可定做），高202*寬162*長174（帶輸出軸）

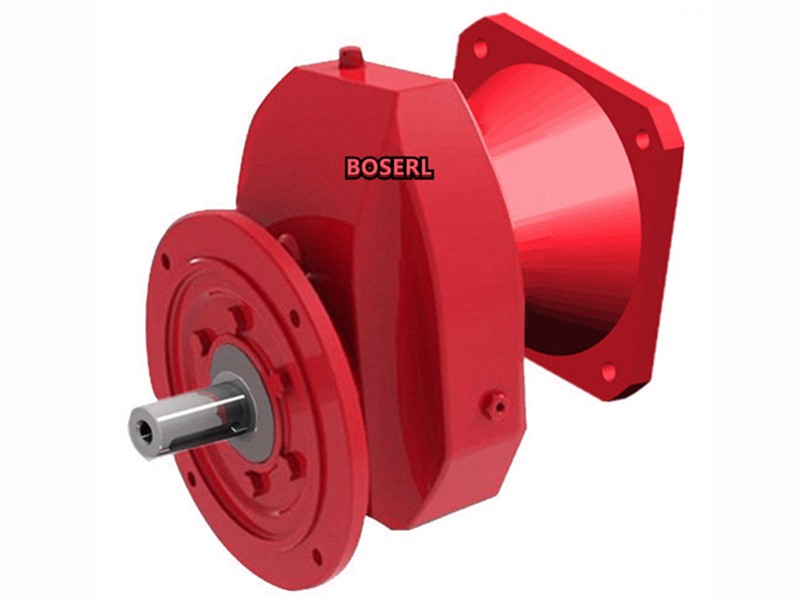

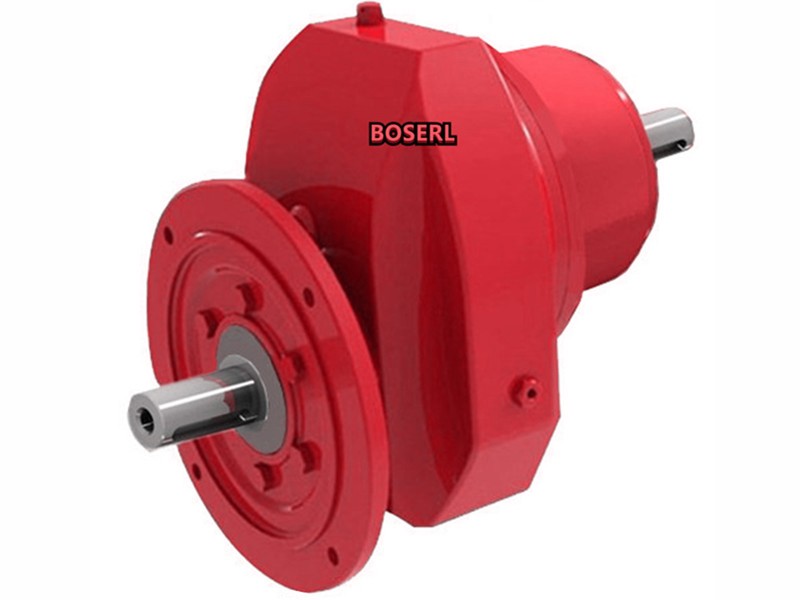

RXF57減速機型號：RXF57AQA80,RXF57AQA100,RXF57AQA115,RXF57AQA140,RXF57AQA160,RXF57AQA190,RXF57AQH80,RXF57AQH100,RXF57AQH115,RXF57AQH140,RXF57AQH160,RXF57AQH190,JRTRXF57-Y0.12KW,JRTRXF57-Y0.18KW,JRTRXF57-Y0.25KW,JRTRXF57-Y0.37KW,JRTRXF57-Y0.55KW,JRTRXF57-Y0.75KW,JRTRXF57-Y1.1KW,JRTRXF57-Y1.5KW,JRTRXF57-Y100M4,JRTRXF57-Y112M4,JRTRXF57-Y132M4,JRTRXF57-Y2.2KW,JRTRXF57-Y3KW,JRTRXF57-Y4KW,JRTRXF57-Y5.5KW,JRTRXF57-Y63M4,JRTRXF57-Y7.5KW,JRTRXF57-Y71M4,JRTRXF57-Y80M4,JRTRXF57-Y90M4,JRTRXF57-YEJ100M4,JRTRXF57-YEJ112M4,JRTRXF57-YEJ132M4,JRTRXF57-YEJ63M4,JRTRXF57-YEJ71M4,JRTRXF57-YEJ80M4,JRTRXF57-YEJ90M4,JRTRXF57-YS100M4,JRTRXF57-YS112M4,JRTRXF57-YS132M4,JRTRXF57-YS63M4,JRTRXF57-YS71M4,JRTRXF57-YS80M4,JRTRXF57-YS90M4,JRTRXF57-YVP100M4,JRTRXF57-YVP112M4,JRTRXF57-YVP132M4,JRTRXF57-YVP63M4,JRTRXF57-YVP71M4,JRTRXF57-YVP80M4,JRTRXF57-YVP90M4,JRTRXF57-YVPEJ100M4,JRTRXF57-YVPEJ112M4,JRTRXF57-YVPEJ132M4,JRTRXF57-YVPEJ63M4,JRTRXF57-YVPEJ71M4,JRTRXF57-YVPEJ80M4,JRTRXF57-YVPEJ90M4,EWRXF57-Y0.12KW,EWRXF57-Y0.18KW,EWRXF57-Y0.25KW,EWRXF57-Y0.37KW,EWRXF57-Y0.55KW,EWRXF57-Y0.75KW,EWRXF57-Y1.1KW,EWRXF57-Y1.5KW,EWRXF57-Y100M4,EWRXF57-Y112M4,EWRXF57-Y132M4,EWRXF57-Y2.2KW,EWRXF57-Y3KW,EWRXF57-Y4KW,EWRXF57-Y5.5KW,EWRXF57-Y63M4,EWRXF57-Y7.5KW,EWRXF57-Y71M4,EWRXF57-Y80M4,EWRXF57-Y90M4,EWRXF57-YEJ100M4,EWRXF57-YEJ112M4,EWRXF57-YEJ132M4,EWRXF57-YEJ63M4,EWRXF57-YEJ71M4,EWRXF57-YEJ80M4,EWRXF57-YEJ90M4,EWRXF57-YS100M4,EWRXF57-YS112M4,EWRXF57-YS132M4,EWRXF57-YS63M4,EWRXF57-YS71M4,EWRXF57-YS80M4,EWRXF57-YS90M4,EWRXF57-YVP100M4,EWRXF57-YVP112M4,EWRXF57-YVP132M4,EWRXF57-YVP63M4,EWRXF57-YVP71M4,EWRXF57-YVP80M4,EWRXF57-YVP90M4,EWRXF57-YVPEJ100M4,EWRXF57-YVPEJ112M4,EWRXF57-YVPEJ132M4,EWRXF57-YVPEJ63M4,EWRXF57-YVPEJ71M4,EWRXF57-YVPEJ80M4,EWRXF57-YVPEJ90M4,SLRXF57-Y0.12KW,SLRXF57-Y0.18KW,SLRXF57-Y0.25KW,SLRXF57-Y0.37KW,SLRXF57-Y0.55KW,SLRXF57-Y0.75KW,SLRXF57-Y1.1KW,SLRXF57-Y1.5KW,SLRXF57-Y100M4,SLRXF57-Y112M4,SLRXF57-Y132M4,SLRXF57-Y2.2KW,SLRXF57-Y3KW,SLRXF57-Y4KW,SLRXF57-Y5.5KW,SLRXF57-Y63M4,SLRXF57-Y7.5KW,SLRXF57-Y71M4,SLRXF57-Y80M4,SLRXF57-Y90M4,SLRXF57-YEJ100M4,SLRXF57-YEJ112M4,SLRXF57-YEJ132M4,SLRXF57-YEJ63M4,SLRXF57-YEJ71M4,SLRXF57-YEJ80M4,SLRXF57-YEJ90M4,SLRXF57-YS100M4,SLRXF57-YS112M4,SLRXF57-YS132M4,SLRXF57-YS63M4,SLRXF57-YS71M4,SLRXF57-YS80M4,SLRXF57-YS90M4,SLRXF57-YVP100M4,SLRXF57-YVP112M4,SLRXF57-YVP132M4,SLRXF57-YVP63M4,SLRXF57-YVP71M4,SLRXF57-YVP80M4,SLRXF57-YVP90M4,SLRXF57-YVPEJ100M4,SLRXF57-YVPEJ112M4,SLRXF57-YVPEJ132M4,SLRXF57-YVPEJ63M4,SLRXF57-YVPEJ71M4,SLRXF57-YVPEJ80M4,SLRXF57-YVPEJ90M4,DSZRXF57-Y0.12KW,DSZRXF57-Y0.18KW,DSZRXF57-Y0.25KW,DSZRXF57-Y0.37KW,DSZRXF57-Y0.55KW,DSZRXF57-Y0.75KW,DSZRXF57-Y1.1KW,DSZRXF57-Y1.5KW,DSZRXF57-Y100M4,DSZRXF57-Y112M4,DSZRXF57-Y132M4,DSZRXF57-Y2.2KW,DSZRXF57-Y3KW,DSZRXF57-Y4KW,DSZRXF57-Y5.5KW,DSZRXF57-Y63M4,DSZRXF57-Y7.5KW,DSZRXF57-Y71M4,DSZRXF57-Y80M4,DSZRXF57-Y90M4,DSZRXF57-YEJ100M4,DSZRXF57-YEJ112M4,DSZRXF57-YEJ132M4,DSZRXF57-YEJ63M4,DSZRXF57-YEJ71M4,DSZRXF57-YEJ80M4,DSZRXF57-YEJ90M4,DSZRXF57-YS100M4,DSZRXF57-YS112M4,DSZRXF57-YS132M4,DSZRXF57-YS63M4,DSZRXF57-YS71M4,DSZRXF57-YS80M4,DSZRXF57-YS90M4,DSZRXF57-YVP100M4,DSZRXF57-YVP112M4,DSZRXF57-YVP132M4,DSZRXF57-YVP63M4,DSZRXF57-YVP71M4,DSZRXF57-YVP80M4,DSZRXF57-YVP90M4,DSZRXF57-YVPEJ100M4,DSZRXF57-YVPEJ112M4,DSZRXF57-YVPEJ132M4,DSZRXF57-YVPEJ63M4,DSZRXF57-YVPEJ71M4,DSZRXF57-YVPEJ80M4,DSZRXF57-YVPEJ90M4,BRXF57-Y0.12KW,BRXF57-Y0.18KW,BRXF57-Y0.25KW,BRXF57-Y0.37KW,BRXF57-Y0.55KW,BRXF57-Y0.75KW,BRXF57-Y1.1KW,BRXF57-Y1.5KW,BRXF57-Y100M4,BRXF57-Y112M4,BRXF57-Y132M4,BRXF57-Y2.2KW,BRXF57-Y3KW,BRXF57-Y4KW,BRXF57-Y5.5KW,BRXF57-Y63M4,BRXF57-Y7.5KW,BRXF57-Y71M4,BRXF57-Y80M4,BRXF57-Y90M4,BRXF57-YEJ100M4,BRXF57-YEJ112M4,BRXF57-YEJ132M4,BRXF57-YEJ63M4,BRXF57-YEJ71M4,BRXF57-YEJ80M4,BRXF57-YEJ90M4,BRXF57-YS100M4,BRXF57-YS112M4,BRXF57-YS132M4,BRXF57-YS63M4,BRXF57-YS71M4,BRXF57-YS80M4,BRXF57-YS90M4,BRXF57-YVP100M4,BRXF57-YVP112M4,BRXF57-YVP132M4,BRXF57-YVP63M4,BRXF57-YVP71M4,BRXF57-YVP80M4,BRXF57-YVP90M4,BRXF57-YVPEJ100M4,BRXF57-YVPEJ112M4,BRXF57-YVPEJ132M4,BRXF57-YVPEJ63M4,BRXF57-YVPEJ71M4,BRXF57-YVPEJ80M4,BRXF57-YVPEJ90M4,GRXF57-Y0.12KW,GRXF57-Y0.18KW,GRXF57-Y0.25KW,GRXF57-Y0.37KW,GRXF57-Y0.55KW,GRXF57-Y0.75KW,GRXF57-Y1.1KW,GRXF57-Y1.5KW,GRXF57-Y100M4,GRXF57-Y112M4,GRXF57-Y132M4,GRXF57-Y2.2KW,GRXF57-Y3KW,GRXF57-Y4KW,GRXF57-Y5.5KW,GRXF57-Y63M4,GRXF57-Y7.5KW,GRXF57-Y71M4,GRXF57-Y80M4,GRXF57-Y90M4,GRXF57-YEJ100M4,GRXF57-YEJ112M4,GRXF57-YEJ132M4,GRXF57-YEJ63M4,GRXF57-YEJ71M4,GRXF57-YEJ80M4,GRXF57-YEJ90M4,GRXF57-YS100M4,GRXF57-YS112M4,GRXF57-YS132M4,GRXF57-YS63M4,GRXF57-YS71M4,GRXF57-YS80M4,GRXF57-YS90M4,GRXF57-YVP100M4,GRXF57-YVP112M4,GRXF57-YVP132M4,GRXF57-YVP63M4,GRXF57-YVP71M4,GRXF57-YVP80M4,GRXF57-YVP90M4,GRXF57-YVPEJ100M4,GRXF57-YVPEJ112M4,GRXF57-YVPEJ132M4,GRXF57-YVPEJ63M4,GRXF57-YVPEJ71M4,GRXF57-YVPEJ80M4,GRXF57-YVPEJ90M4,RCXF57-Y0.12KW,RCXF57-Y0.18KW,RCXF57-Y0.25KW,RCXF57-Y0.37KW,RCXF57-Y0.55KW,RCXF57-Y0.75KW,RCXF57-Y1.1KW,RCXF57-Y1.5KW,RCXF57-Y100M4,RCXF57-Y112M4,RCXF57-Y132M4,RCXF57-Y2.2KW,RCXF57-Y3KW,RCXF57-Y4KW,RCXF57-Y5.5KW,RCXF57-Y63M4,RCXF57-Y7.5KW,RCXF57-Y71M4,RCXF57-Y80M4,RCXF57-Y90M4,RCXF57-YEJ100M4,RCXF57-YEJ112M4,RCXF57-YEJ132M4,RCXF57-YEJ63M4,RCXF57-YEJ71M4,RCXF57-YEJ80M4,RCXF57-YEJ90M4,RCXF57-YS100M4,RCXF57-YS112M4,RCXF57-YS132M4,RCXF57-YS63M4,RCXF57-YS71M4,RCXF57-YS80M4,RCXF57-YS90M4,RCXF57-YVP100M4,RCXF57-YVP112M4,RCXF57-YVP132M4,RCXF57-YVP63M4,RCXF57-YVP71M4,RCXF57-YVP80M4,RCXF57-YVP90M4,RCXF57-YVPEJ100M4,RCXF57-YVPEJ112M4,RCXF57-YVPEJ132M4,RCXF57-YVPEJ63M4,RCXF57-YVPEJ71M4,RCXF57-YVPEJ80M4,RCXF57-YVPEJ90M4,MTDXF57-Y0.12KW,MTDXF57-Y0.18KW,MTDXF57-Y0.25KW,MTDXF57-Y0.37KW,MTDXF57-Y0.55KW,MTDXF57-Y0.75KW,MTDXF57-Y1.1KW,MTDXF57-Y1.5KW,MTDXF57-Y100M4,MTDXF57-Y112M4,MTDXF57-Y132M4,MTDXF57-Y2.2KW,MTDXF57-Y3KW,MTDXF57-Y4KW,MTDXF57-Y5.5KW,MTDXF57-Y63M4,MTDXF57-Y7.5KW,MTDXF57-Y71M4,MTDXF57-Y80M4,MTDXF57-Y90M4,MTDXF57-YEJ100M4,MTDXF57-YEJ112M4,MTDXF57-YEJ132M4,MTDXF57-YEJ63M4,MTDXF57-YEJ71M4,MTDXF57-YEJ80M4,MTDXF57-YEJ90M4,MTDXF57-YS100M4,MTDXF57-YS112M4,MTDXF57-YS132M4,MTDXF57-YS63M4,MTDXF57-YS71M4,MTDXF57-YS80M4,MTDXF57-YS90M4,MTDXF57-YVP100M4,MTDXF57-YVP112M4,MTDXF57-YVP132M4,MTDXF57-YVP63M4,MTDXF57-YVP71M4,MTDXF57-YVP80M4,MTDXF57-YVP90M4,MTDXF57-YVPEJ100M4,MTDXF57-YVPEJ112M4,MTDXF57-YVPEJ132M4,MTDXF57-YVPEJ63M4,MTDXF57-YVPEJ71M4,MTDXF57-YVPEJ80M4,MTDXF57-YVPEJ90M4,WXRXF57-WSS0.12KW,WXRXF57-WSS0.18KW,WXRXF57-WSS0.25KW,WXRXF57-WSS0.37KW,WXRXF57-WSS0.55KW,WXRXF57-WSS0.75KW,WXRXF57-WSS1.1KW,WXRXF57-WSS1.5KW,WXRXF57-WSS100M4,WXRXF57-WSS112M4,WXRXF57-WSS132M4,WXRXF57-WSS2.2KW,WXRXF57-WSS3KW,WXRXF57-WSS4KW,WXRXF57-WSS5.5KW,WXRXF57-WSS63M4,WXRXF57-WSS7.5KW,WXRXF57-WSS71M4,WXRXF57-WSS80M4,WXRXF57-WSS90M4,WXRXF57-WSSB100M4,WXRXF57-WSSB112M4,WXRXF57-WSSB132M4,WXRXF57-WSSB63M4,WXRXF57-WSSB71M4,WXRXF57-WSSB80M4,WXRXF57-WSSB90M4,WXRXF57-WSSVP100M4,WXRXF57-WSSVP112M4,WXRXF57-WSSVP132M4,WXRXF57-WSSVP63M4,WXRXF57-WSSVP71M4,WXRXF57-WSSVP80M4,WXRXF57-WSSVP90M4,WXRXF57-WSSVP100M4,WXRXF57-WSSVP112M4,WXRXF57-WSSVP132M4,WXRXF57-WSSVP63M4,WXRXF57-WSSVP71M4,WXRXF57-WSSVP80M4,WXRXF57-WSSVP90M4,WXRXF57-WSSVPB100M4,WXRXF57-WSSVPB112M4,WXRXF57-WSSVPB132M4,WXRXF57-WSSVPB63M4,WXRXF57-WSSVPB71M4,WXRXF57-WSSVPB80M4,WXRXF57-WSSVPB90M4。
